Summit 30" Wide Wall-Mounted Range Hood, ADA Compliant

Original price $1,219.00 - Original price $1,219.00
Original price
$1,219.00
$1,219.00 - $1,219.00
Current price $1,219.00

What we offer!

✔ Same-Day Order Processing

✔ FREE Shipping

✔ NO TAX

✔ Full Manufacture Warranty

SKU SEH1530CADA



Specially designed for accessible use in ADA compliant kitchens

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

Made in Spain, the SEH1530CADA is a 30" wide range hood with a pre-installed 530 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range.

The SEH1530CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required.

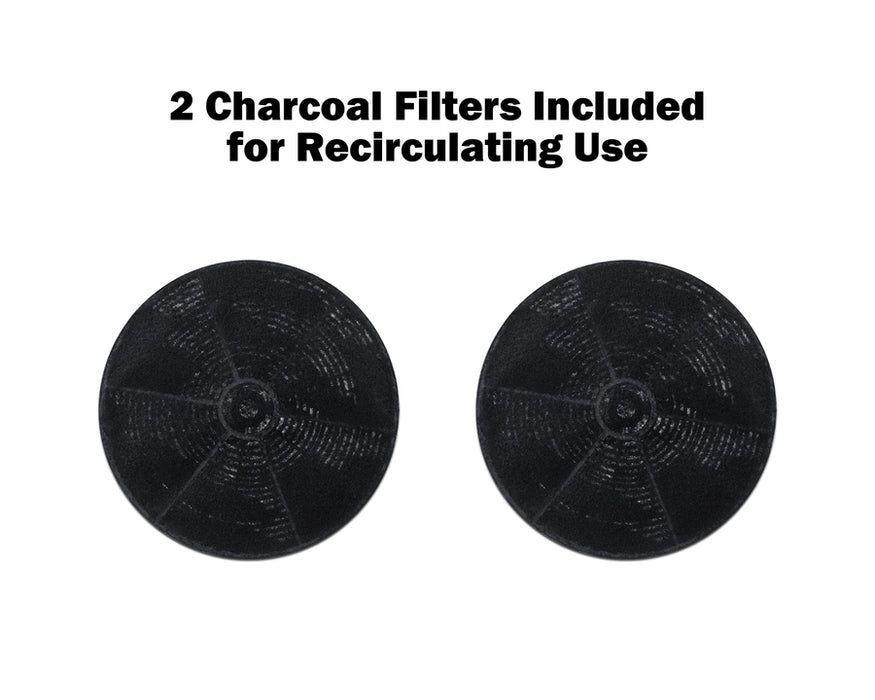

This wall-mounted hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Spain and ships in one box. Additional wall-mounted and under cabinet hoods are available in an ADA compliant design. Browse our website for more choices.
Overview
Height of Cabinet 32.0" (81 cm)
Width 29.75" (76 cm)
Depth 19.63" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Weight 30.0 lbs. (14 kg)
Shipping Weight 50.0 lbs. (23 kg)
Parts & Labor Warranty 1 Year
UPC 761101063553
Range Hood
Installation Wall-Mounted
Venting Convertible w/ Filter Set
Controls Slide
Light Yes
Number of Lights 2
Light Type Incandescent
Number of Fan Speeds 3
Maximum Air Movement 530.0 CFM
Sone Rating 11
Minimum Height 31.0" (79 cm)
Maximum Height 50.0" (127 cm)
Duct Shape 6" Round

FEATURES

ADA compliant design

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)

Stainless steel construction

Quality material with an elegant look in brushed stainless steel

530 CFM blower

Professional motor is preinstalled for easy use

Convertible with filter

Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set

Two aluminum cassette filters

Dishwasher safe filters offer wide filtration area for better ventilation

Timer function

Set the unit to ventilate for a 15 minute interval that automatically turns off when complete

Two 40W lights

Includes two preinstalled incandescent bulbs

Three-speed fan

Offers more options for ventilation

European made

Designed and manufactured in Spain with all UL-Listed components

Height adjustable chimney

Chimney height can be set from 21 3/4" to 41 3/4"

6" round ducting

Ideal for most kitchen settings

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
