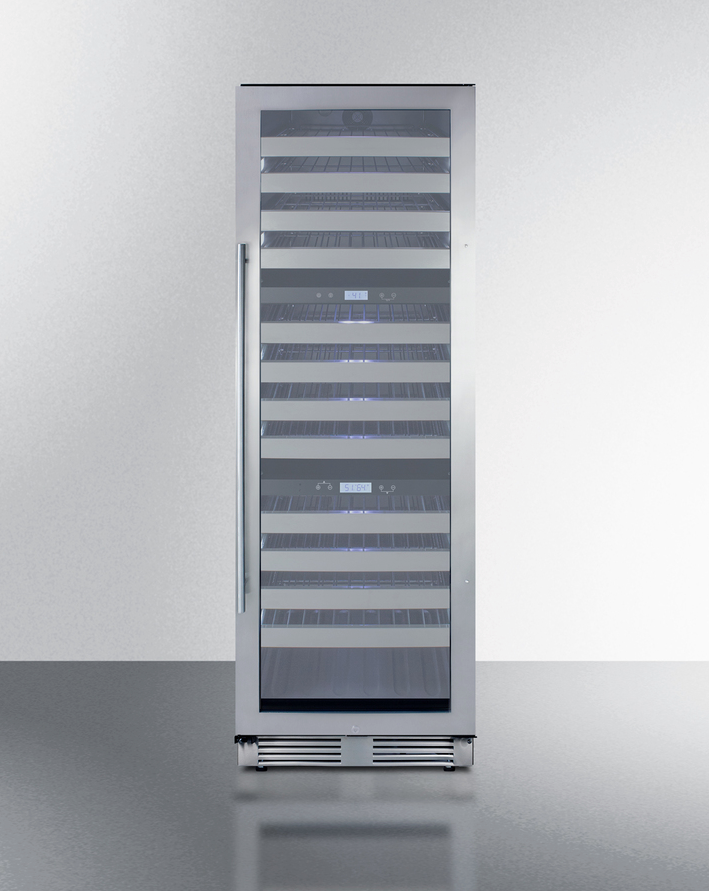

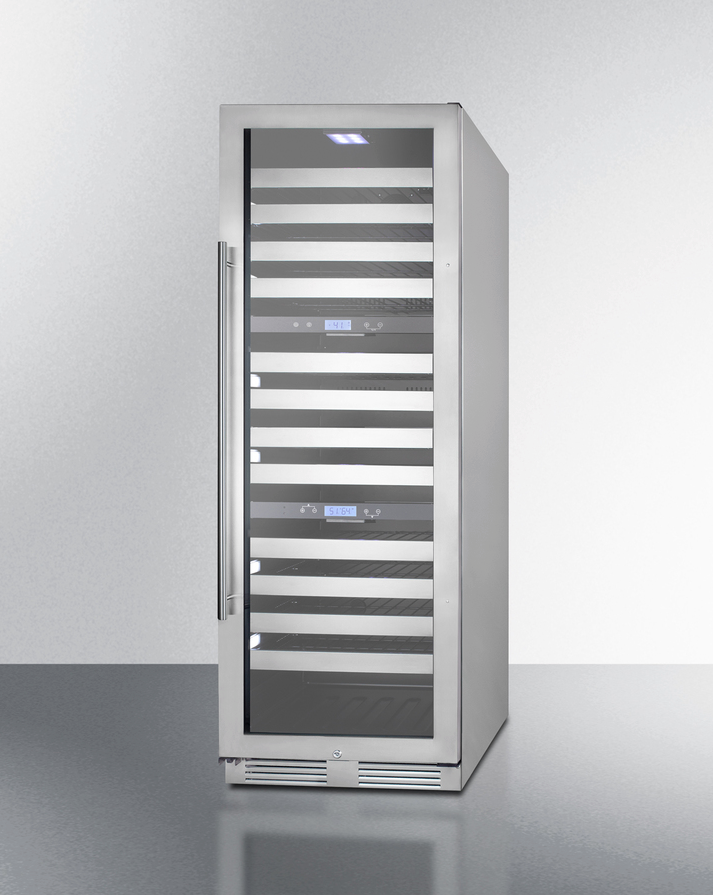

Summit 24" Wide Triple Zone Wine Cellar

Original price $3,399.00 - Original price $3,399.00
Original price
$3,399.00
$3,399.00 - $3,399.00
Current price $3,399.00

What we offer!

✅ 0% APR Finance Available

✅ Full Manufacture Warranty

✅ Same-Day Order Processing

✅ Free Shipping Continental U.S

✅ No Sales Tax what you see is what you pay.

SKU SWCP1988TCSS



Luxury design built to NSF-7 standards for versatile use in residential or commercial settings

Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use.

The SWCP1988TCSS is a 24" wide triple zone wine cellar that is ETL-S listed to NSF-7 commercial standards. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings.

Three temperature zones allow you to accommodate red, white, or sparkling wine, as well as non-alcoholic bottled beverages. The upper zone temperature can be set between 41 and 65°F for versatile storage, with more space on the top shelf to accommodate champagne bottles. A rubber sealing strip prevents air in the upper zone from affecting the air temperature in lower compartments. The middle zone can operate between 41 and 54°F, while the lower zone is best suited for preserving red wine with a range of 54-65°F. Two separate cooling systems (one for the upper zone and one for the middle and lower zones) ensure proper cooling.

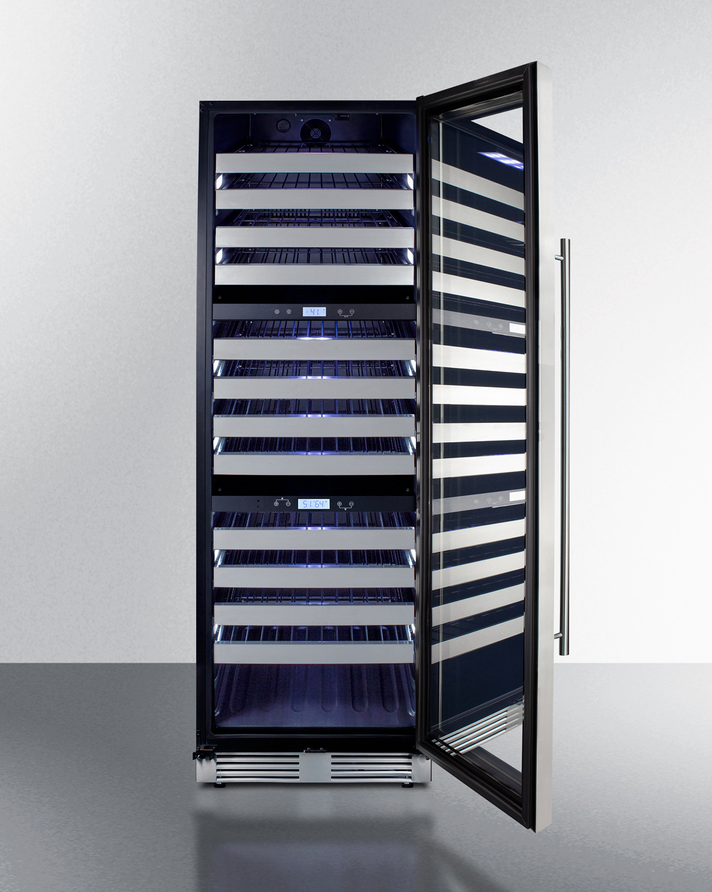

Inside, the SWCP1988TCSS includes 12 full-extension black wire shelves, four in each zone, positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 149 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP1988T can hold up to 102 bottles. 13 white LED lights are positioned on the sides and top of the unit to attractively illuminate your collection for a stylish display. A charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.

With its convenient size, advanced features, and luxury design, the SWCP1988TCSS is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.
Overview
Height of Cabinet 69.5" (177 cm)
Width 23.63" (60 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 8.75" (22 cm)
Bottles 149 bottles
Defrost Type Automatic
Door Glass/SS
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 279.0 lbs. (127 kg)
Shipping Weight 300.0 lbs. (136 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082790
Wine Cellar
Number of Zones 3
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 62.75" (159 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 26.5" (67 cm)
Level Legs 2
Temperature Range 41-65°F (upper zone); 41-54°F (middle zone); 54-65°F (lower zone)

AVAILABLE UPGRADES

Door
T2F Door Tint T4F Door Tint
T1SF Door Tint T3F Door Tint
Exterior
LHD - Left hand door swing

FEATURES

Commercially approved

ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings

Built-in capable

Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

Three temperature zones

Versatile upper zone accommodates red, white, or sparkling wine. The middle zone chills white wine while the lower zone preserves yours reds at a warmer temperature

Two cooling systems

Two cooling systems (one for the upper zone and one for the middle/lower zones) ensure your collection is kept under the proper conditions

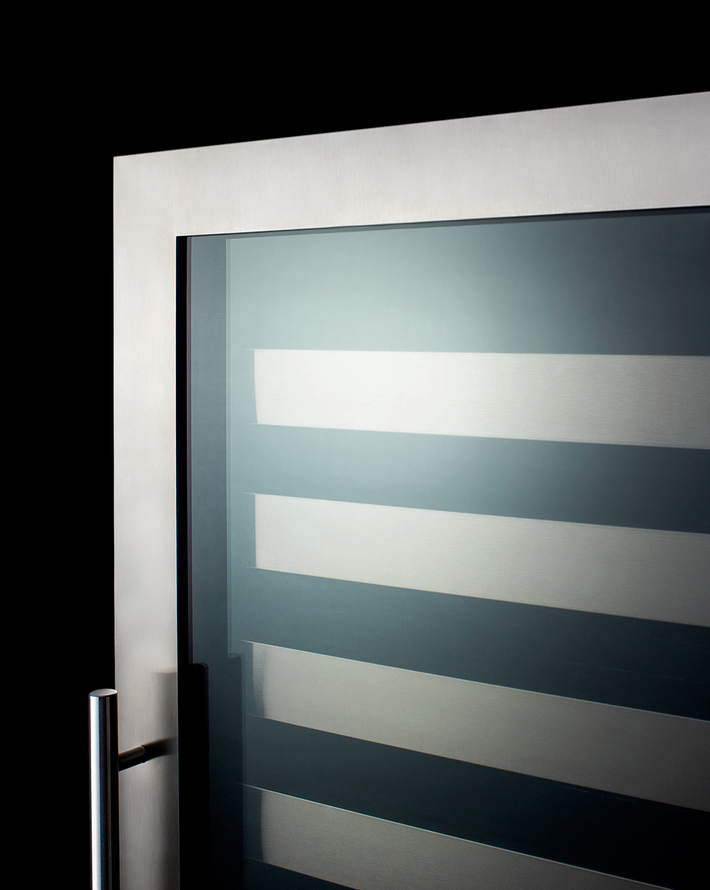

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Seamless stainless steel door frame

Single-piece door trim offers a more deluxe look

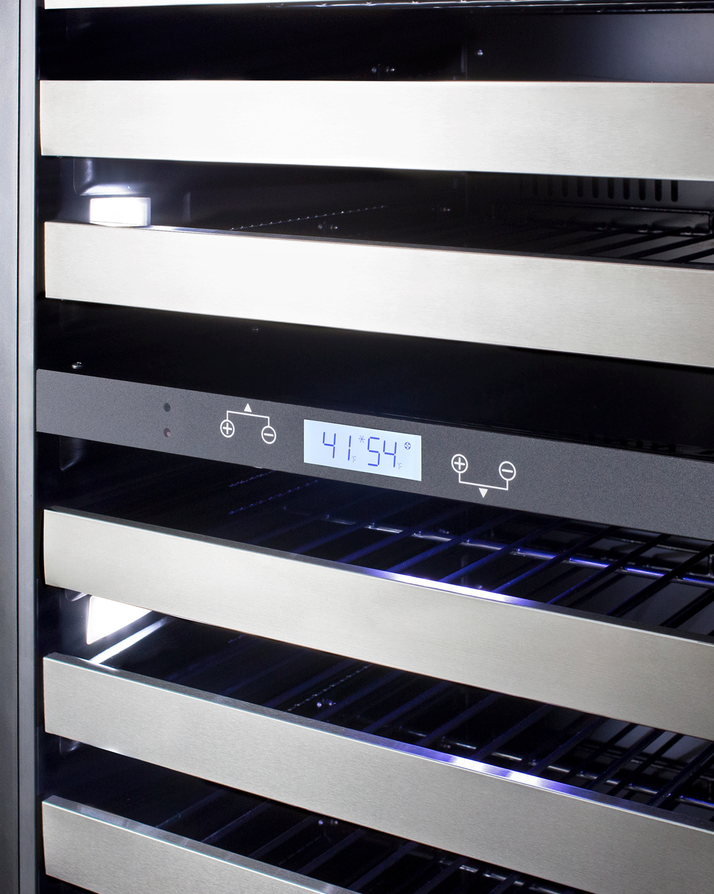

Digital thermostats

Located inside the unit, the digital thermostats allow easy temperature management with a display in Celsius or Fahrenheit

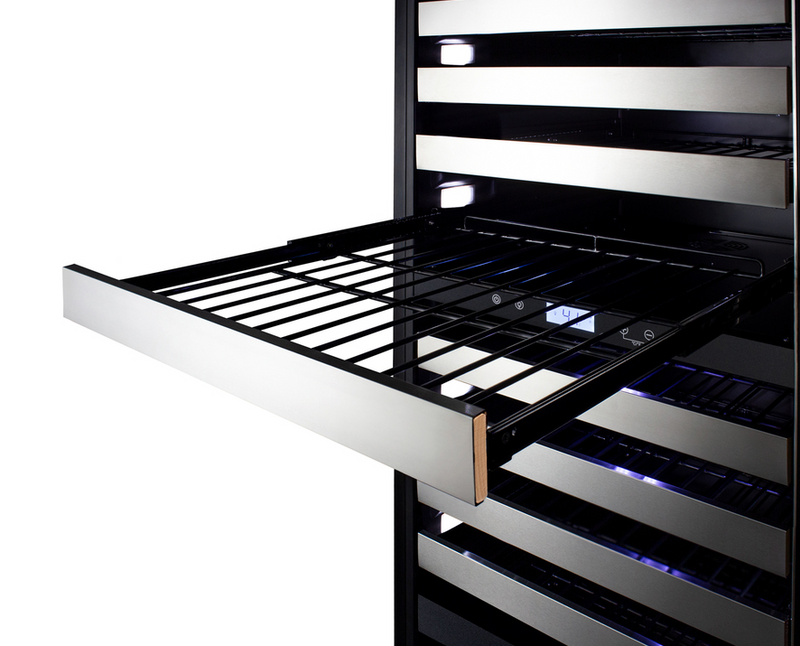

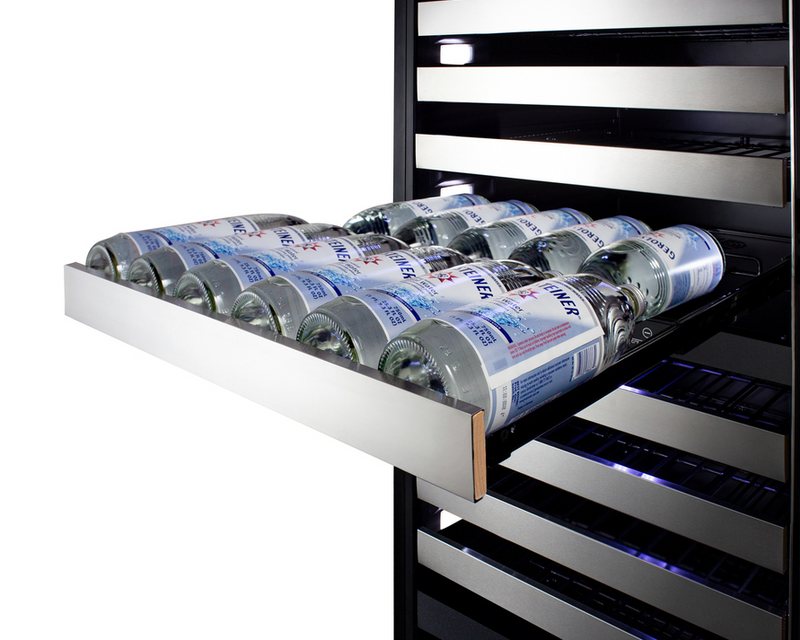

Full-extension wire shelving

12 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Stainless steel trimmed shelving

Fronts feature a stainless steel accent to elevate your presentation

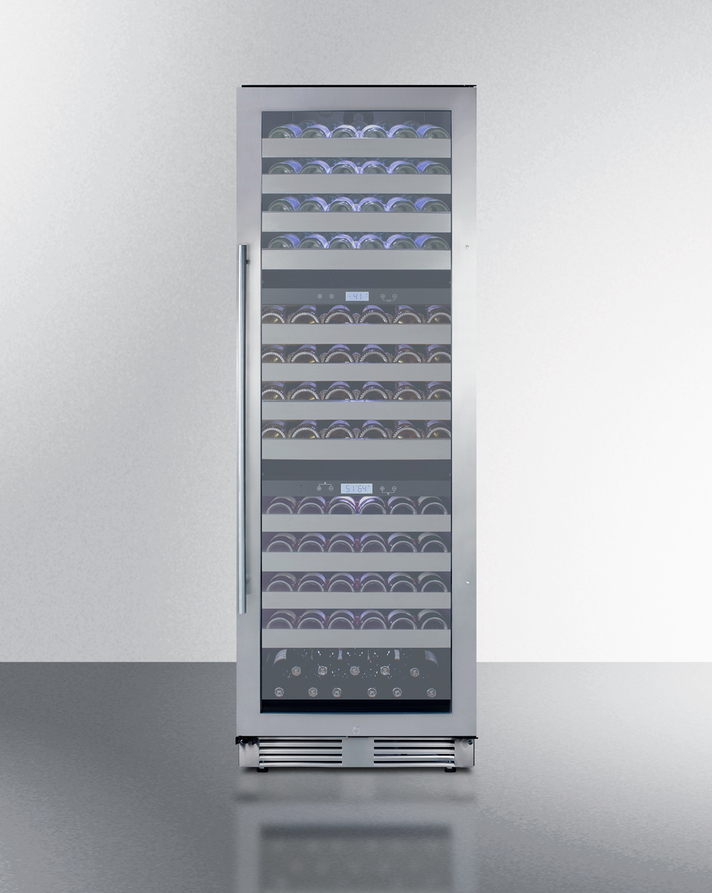

Versatile storage

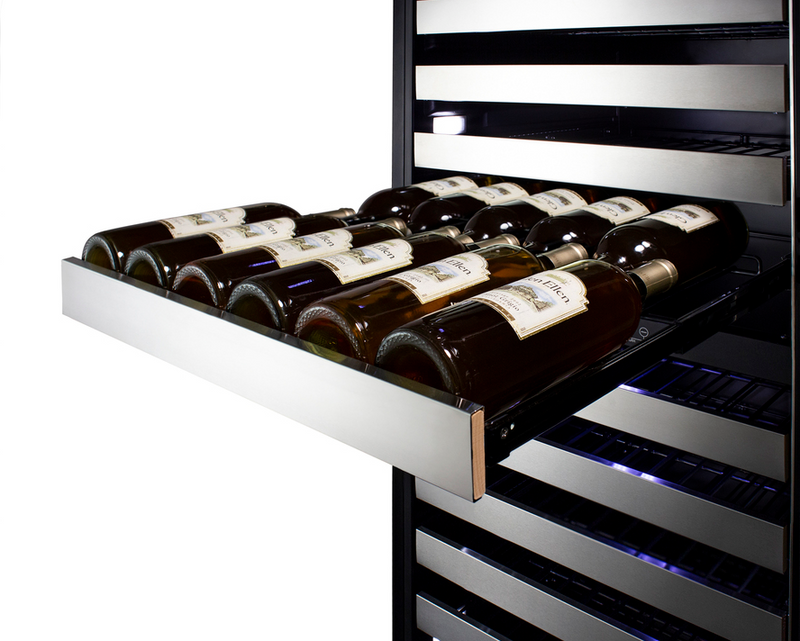

Interior can hold up to 149 standard 750ml Bordeaux style bottles (17 bottles stacked on the upper shelf, 11 bottles on each additional shelf, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 102 bottles (8 per shelf with 6 stacked on the slotted floor)

Professional handle

37" long handle in a brushed stainless look offers the perfect finish to your wine cellar

LED lighting

13 LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue

Factory-installed lock

Keyed lock secures all three zones (2 keys included)

Temperature range

Upper zone: 41-65°F for red, white, or sparkling wine; Middle zone: 41-54°F perfect for chilling white; Lower zone: 54-65°F for holding reds at a warmer temperature

Stainless steel kickplate

Allows for front ventilation in an elegant design

Sealing strip

Rubber trim prevents air in the upper zone from affecting the air temperature in the middle and lower zones

Charcoal filtration system

Helps to purify air for an odor-free interior

High/low temperature alarms

Audibly sounds if the interior rises or falls out of recommended range

Open door alarm

Alerts if unit door is ajar for more than 5 minutes

Magnetic door gasket

Ensures a tight seal for energy savings and improved performance

Sealed back

Flush back allows for a better fit and easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations


DOWNLOADS

Download

BROCHURE w/ DRAWINGS
SWCP1988TCSS.pdf

Download

TECHNICAL DRAWING (.dwg)
SWCP1988T_WINE_CELLAR__A-C_2018__.dwg


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
