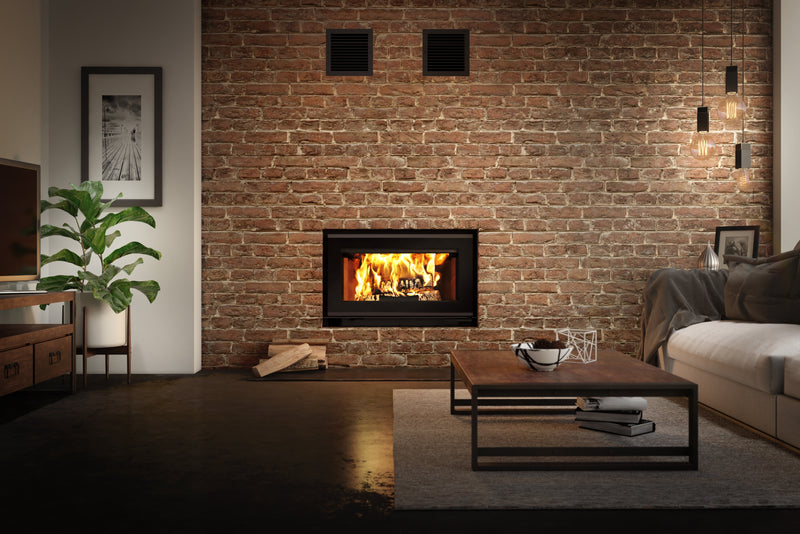

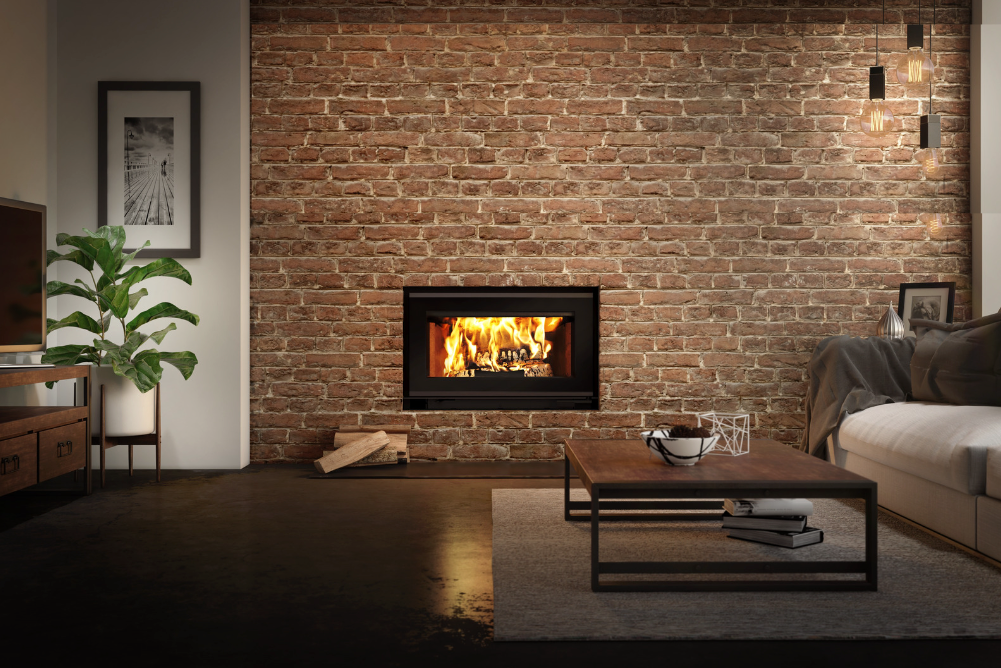

Valcourt Mundo II Wood-Burning Fireplace
What we offer!
✅ Finance Available!
✅ Full Manufacture Warranty!
✅ Same-Day Order Processing!
✅ Shipping is Free for all items except for bespoke products!
✅ A streamlined, secure, and user-friendly one-page checkout experience.
✅ All items, except custom-made products, will be shipped within 24 to 48 hours!
Holder of an industrial design protection, with its sleek lines and refined look, the Mundo II completely redefines the true nature of wood heating. Its modern design perfectly combines functionality, comfort and safety. Environmentally-friendly, this non-catalytic fireplace is EPA certified with an incredibly low particle emissions rate.
The air gravity kit available with the Mundo II will allow you to harness all the power from this incredible fireplace while respecting the contemporary lines of your decor. The most serious user can also install a forced air kit which will allow for better and more efficient heat transfers to rooms located further from the fireplace.
APPLIANCE PERFORMANCE
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
() Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
(9) This appliance is officially tested and certified by an independent agency.
(10) Carbon monoxyde.
GENERAL FEATURES
Combustion technology | Non-catalytic |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Maximum log length | 20" |
Log positioning | Loading over width |
Chimney diameter | 6" |
Flue outlet diameter | 6" |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height (feet) | 15' |
Baffle type | C-Cast or equivalent |
Approved for a mobile home installation | No |
Shipping Weight | 427 lb (193.6kg) |
Door type | Single, glass with steel frame |
Glass type | Ceramic glass |
Glass surface – dimensions (Width X Height) | 26 1/8" X 13 3/8" |
Glass air-wash system | Yes |
Overall dimension (Height) | 40 5/8" |
Overall dimension (Width) | 50 1/4" |
Overall dimension (Depth) | 27" |
Door opening – dimension (Height) | 10 3/8" |
Door opening - dimension (Width) | 25 3/8" |
Firebox – dimension (Height) | 12 1/8" |
Firebox – dimension (Width) | 20 3/8" |
Firebox – dimension (Depth) | 12 7/8" |
Moulded refractory bricks | Yes |
Stainless-steel secondary-air system improving gas combustion | Yes |
USA standard (emissions) | EPA |
Canadian Standard (emissions) | CSA B415.1-10 |
USA standard (safety) | UL 127 |
Canadian standard (safety) | ULC-S610 |
Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
Warranty | Limited lifetime |
APPROVED CHIMNEY TYPES
Manufacturiers* | Brand | Type | Diameter |
---|---|---|---|
American Metal | HSS | AC Triple Wall | 6" (15 cm) |
American Metal | HS | AC Triple Wall | 6" (15 cm) |
DuraVent | DuraTech | 1" Solid Pack | 6" (15 cm) |
DuraVent | DuraTech Canada (DTC) | 1" Solid Pack | 6" (15 cm) |
DuraVent | DuraPlus HTC | 2" Solid Pack | 6" (15 cm) |
DuraVent | DuraTech Premium | 2" Solid Pack | 6" (15 cm) |
DuraVent | DuraPlus | AC Triple Wall | 6" (15 cm) |
Metal Fab | Temp Guard | 1" Solid Pack | 6" (15 cm) |
Olympia Chimney | Champion Chimney System | 1" Solid Pack | 6" (15 cm) |
Olympia Chimney | Rockford Chimney Systems | 1" Solid Pack | 6" (15 cm) |
Olympia Chimney/SBI Venting Division | Ventis | 1" Solid Pack | 6" (15 cm) |
SBI Venting Division | Nexvent | 1" Solid Pack | 6" (15 cm) |
Security Chimney | S-2100 + | 2" Solid Pack | 6" (15 cm) |
Selkirk | CF Sentinel (CF) | 2" Solid Pack | 6" (15 cm) |
Selkirk | Super Pro 2100 (ALT) | 2" Solid Pack | 6" (15 cm) |
Selkirk | Super Vent 2100 (JM) | 2" Solid Pack | 6" (15 cm) |
* Specific components may be required depending on the chimney manufacturer.
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
Canada | United-States | |
Clearance – top (measured from the platform on which the appliance is installed)** | 76" | 76" |
Clearance – combustible side mantle to unit | 8" | 8" |
Clearance – combustible side wall to unit | 13" | 13" |
Clearance - from the shelf to the base of the fireplace | 48" | 48" |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
||
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
GUIDES
FP12 Mundo II wood fireplace install & owner's manual
(PDF - 9.0 Mo)FP12 Mundo II wood fireplace dimensions
(PDF - 0.3 Mo)FP12 Mundo II quick install reference guide
(PDF - 0.7 Mo)
PLANS & CAD
2D Diagrams FP12 Mundo II
(DWG - 0.9 Mo)2D Diagrams FP12 Mundo II
(DXF - 3.5 Mo)
